- Horizontal Card Reader
The new Series 4 dispesners feature a horizontal card reader for easier access. RFID card reading capability has also been added in order to reach a wider range of customers.
Thanks to the Wineidea software you’ll be able to manage
your customers and all the aspects of your wine business.
- New Wine Tap Technology
Wineemotion’s goal has always been to find the best
solution to preserve and pour wine without altering the
taste. The latest version of our Wine Tap will serve this
pourpose even better, with a new motorized pump that
cleans all the residues from the nozzle. This will improve
wine preservation and dispenser reliabilty.
- Motion Sensor
In order to prolong the life of the displays and to save energy, new dispensers are equipped with a motion sensor that activates the displays only when people are actually around it.
- TFT Color Display
All SERIES 4 self service dispensers feature TFT color
displays. Now white and red wines can be quickly discerned
at a glance.
- Two Independent Cooling zones.
The eight bottle dispenser features two separate areas with independent compressors and cooling system so that ensure a completely separated management of the temperatures.
Silent, reliable and powerful, the new cooling system will keep your wines at the right temperature.
- Frontal air flow.
The new design with the frontal air flow allows the dispenser
to be fully encased without the need of leaving space on the
top or the back for more creative design solutions
Caratteristiche
USE AND ACTIVATION SYSTEM
Dispenser works in behind the bar mode (no wine card) or self service
with wine card (chip or RFID) or barcode reader.
SERVICE TEMPERATURES
Fully independent zones ranging from 6°C to 22°C.
POURS
Up to three pour volumes through high quality mechanical buttons
SOFTWARE CONNECTION
Connection between modules and software through LAN wire and
WI/FI* with TCP/IP protocol.
BOTTLES LIFTING SYSTEM
Lifting system withpneumatic pistons.
COOLING SYSTEM
Use of modern no-frost, noiseless professional cooling system.
WINE CARD
Chip or RFID cards.
GAS
Nitrogen or food grade Argon (cylinder or generator not included
CUSTOMIZATIONS
Machine color can be customized, Front panel can be silkscreened*
LED ILLUMINATION
Intelligent led RGB system for an infinite variety of color combinations.
LOCKING SYSTEM
Automatic lock activated by Smart Card or RFID*.
ANTI CONDENSATION GLASS
Glass doors are treated with a special coating that prevents condensation .
* Optional
Dimensions and Weight
| Width | 1010mm | 39 3/4″ |
| Height | 632mm | 24 7/8″ |
| Depth | 398mm | 1511/16″ |
| Weight | 71kg | 156lbs |
Combinazioni di Temperature

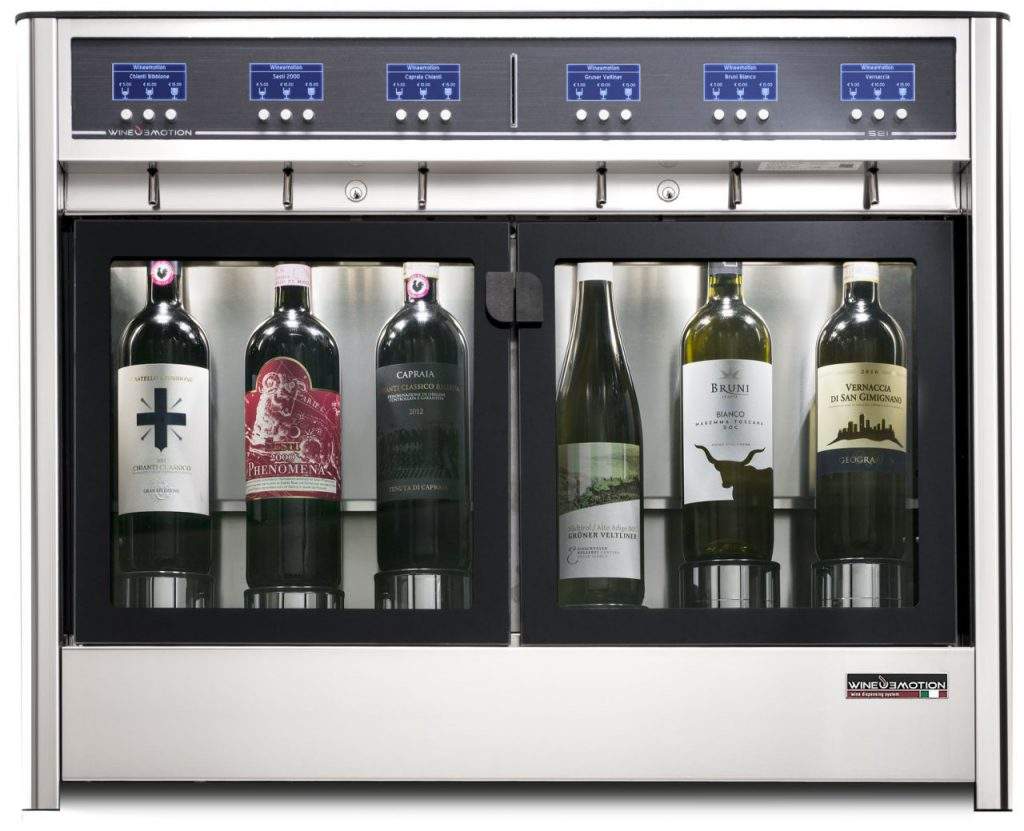

The right choice for Wine Bars, Hotels, Resorts and Cruise Ships.
Otto Dual Temperature Self can be integrated into any context, from private clubs to accommodation facilities, from trade fairs to large cruise ships. Versatility and speed of execution are its distinctive features, high quality, safety and design, the signature of the series to which it belongs. This model has been designed to be used at the counter or behind the counter, the performance and resistance of this equipment allows it to perfectly manage the intense work rhythms typical of high-traffic places.
Eight taps for dispensing 8 different wines at two different temperatures
The particular attention paid to the design of the refrigerating section makes OTTO a dispenser that integrates the best existing technologies. OTTO allows the best conservation of the wine product and a wine always served at the optimal temperature, regardless of the climatic conditions present. Operation involves dispensing from eight different taps, with the ability to set three independent doses
The use of nitrogen or inert gas protects the wine from oxidation and preserves the taste for longer.
Designed to preserve, refrigerate and serve wines directly from the bottle to the glass, our wine dispensers guarantee the best quality of the wine product. The introduction of inert gases into the bottle, Nitrogen or Argon, allow the air to escape and thus prevent oxidation of the wine. For about four weeks the taste and aromas remain unchanged and each glass is served in the ideal condition to enhance the quality of the product. Nitrogen and Argon are inert, colorless and tasteless food grade gases.
